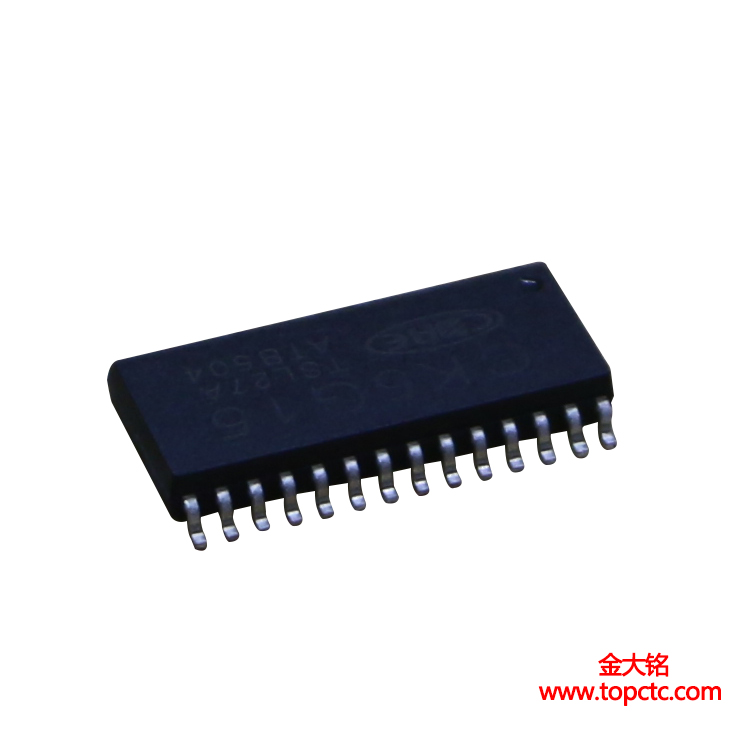

3-phase 600 V gate drive IC

CK5G15

一、DESCRIPTION

The devices are full bridge drivers to control power devices like MOS-transistors or IGBTs in 3-phase systems with a maximum blocking voltage of +600 V.The six independent drivers are controlled at the low-side using CMOS and LSTTL compatible signals, down to 3.3V logic. The device includes an under-voltage detection unit with hysteresis characteristic and over-current detection. The over-current level is adjusted by choosing the resistor value and the threshold level at pin ITRIP. Both error conditions (under-voltage and over-current) lead to a definite shut down of all six switches. An error signal is provided at the open drain output pin. The blocking time after over-current can be adjusted with an RC-network at pin RCIN. Therefore, the resistor RRCIN is optional. The typical output current can be given with 200mA for pull-up and 400mA for pull down.Because of system safety reasons a 0.29us dead time has been realized. The function of inputs EN and ITRIP can optionally be extended with over-temperature detection, using an external NTC resistor, diodes and resistor network..

二、FEATURES

Drives up to six IGBT/MOSFET power devices

All high side channels fully operate up to +600V

Gate drive supplies up to 18 V per channel

Under-voltage lockout for all channels

Over-current protection

Flexible over-temperature shutdown input

Advanced input filter

Built-in dead-time protection

Shoot-through (cross-conduction) protection

Independent Enable/disable input and fault reporting

Shut down all switches during error conditions

Adjustable fault clear timing

Separate logic and power grounds

3.3 V/5V input logic compatible (positive logic)

Designed for use with bootstrap power supplies

Matched propagation delays for all channels

Matched dead time

-40°C to 125°C operating range

SOP28 Package available

Lead-free

三、APPLICATIONS

  Appliance motor drives—air conditioners, washing machines, refrigerator, dish washer,  Fans

  Industrial inverters. General purpose three phase inverters

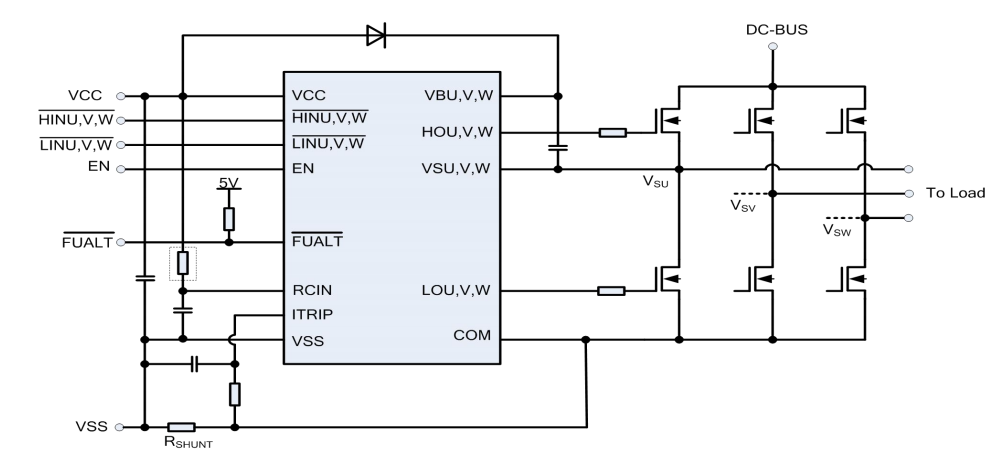

四、Typical application
